Application of 110 kV SF-6 GIS
Produced by "ZETO - Gas Technologies"
in the Сonstruction and Modernization
of Electric Grid Facilities

79, Oktyabrsky Prospect,

Velikie Luki, Pskov region,

Russian Federation, 182100

Tel.: +7 (81153) 6-37-72,

+7 (81153) 6-37-83

Fax +7 (81153) 63845

zeto.ru  |  info@zeto.ru

EQU

I

PME

N

T

I

n the last decade the plant of elec-

trotechnical  equipment,  CJSC

"ZETO" located in Velikie Luki has

been actively working in the fi eld

of  integrated  supplies  to  35-750  kV

power facilities. This approach is fo-

cused  directly  on  customer  needs

and is convenient for projects imple-

mentation.  It  provides  a  signifi cant

reduction  of  open  switchgear  area

and  terms  for  substations  design,

construction and commissioning.

The  plant  produces  reliable  and

modern  products  due  to  the  high

standards of production quality con-

trol,  cooperation  with  major  manu-

facturers  and  implementation  of  the

latest  technologies.

Traditionally, CJSC "ZETO" is fo-

cused on the production of high volt-

age equipment. The main equipment

is  used  in  35-750  kV  open  switch-

gears.  Among  the  equipment  there

are  disconnectors,  circuit  breakers,

earthing  switches,  surge  arrestors,

composite  insulators,  busbar  sup-

ports, rigid busbars, instrument trans-

formers, cubicle switchboards.

The production of gas-fi lled equip-

ment  is  actively  developing.  110,

220 kV SF 6 live tank circuit breakers

(VGT-110 and VGT-220 series), SF-6

dead-tank circuit breakers (VTB-110

and  VTB-220  series),  instrument

current  transformers  (TOGF-110-

330-500  and  TOGP-500  series),

instrument  voltage  transformers

(ZNOG-110-220  series)  and  110  kV

SF-6 gas insulated switchgear (GIS)

are at the stage of mass production.

Production  of  current  transformer

with  nitrogen  insulation  (TOGF-110

series) has been mastered. The ad-

vantages  of  afore-mentioned  equip-

ment  are  environmental  friendliness

and safety of use.

New types of products are being

developed. The production of cubicle

switchboard based on KM-ORU-110

compact  module  was  laucnhed  in

2008.  The  switchboard  is  equipped

with domestic production equipment.

"ZETO SMP North-West" (St. Pe-

tersburg),  "ZETO  SMP  Povolzhie"

(Kazan)  and  "ZETO  SMP  Siberia"

(Krasnoyarsk)  civil  construction  and

installation  departments  have  been

established  to  provide  a  full  range

of services for the customers. These

departments  are  engaged  in  power

facilities  construction  and  commis-

sioning.

The  company  considers  the  im-

plementation  of  integrated  supplies

as the foundation for developing rela-

tions with existing and potential cus-

tomers in the fi eld of electric power

generation,  transmission  and  distri-

bution. Compliance with high quality

control standards at all stages of pro-

duction  up  to  the  commissioning  of

facilities also contributes to business

development.

110  kV  SF-6  GIS  produced  by

CJSC  "ZETO"  was  certifi ed  by  an

interdepartmental  commission  and

recommended  for  use  at  facilities

of  PJSC  "Rosseti"  subsidiaries  and

affi  liates.  It  was  also  certifi ed  in

the  INTERGAZCERT  system.  The

equipment  is  included  in  the  Regis-

ter  of  innovative  solutions  of  PJSC

"Rosseti".  Innovative  technical  solu-

tions for averting the construction of

capital buildings with artifi cially con-

trolled climate provide a possibility to

install  GIS  outdoors  or  in  unheated

rooms (it corresponds to "U" climate

category with the minimum operating

temperature of minus 45 °С and the

second installation category accord-

ing  to  GOST  15150).  The  GIS  pro-

duced  by  CJSC  "ZETO"  complies

with the requirements of the RF Gov-

ernment Decree no. 719 dated July

17, 2015 and Order of the Ministry of

Industry  and  Trade  no.  3568  dated

November 12, 2015. It is also includ-

ed in the "List of the industrial output

made on the territory of the Russian

Federation".  Local  manufacturing

content is up to 95%.

Р

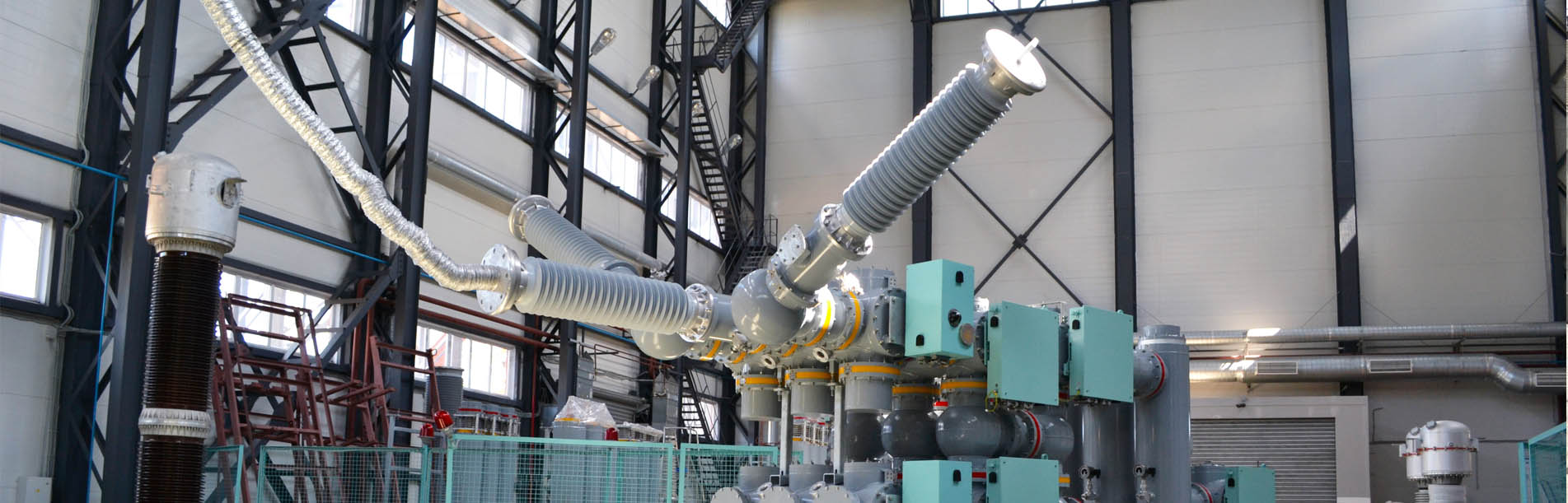

Acceptance tests of 110 kV SF-6 GIS cell at "Vorkuta" substation
